Project Snapshot
A simple shower update can become a larger rebuild when old walls, framing, and substrate are exposed. This project shows the difference between covering a shower and building one correctly.
The Starting Point
"How much should it cost to remodel this shower?"
That question sounds simple, but the answer depends on what is hiding behind the old walls. A shower can look like a basic tile job from the outside, then turn into wall repair, structure correction, substrate prep, waterproofing, and finish work once demo begins.

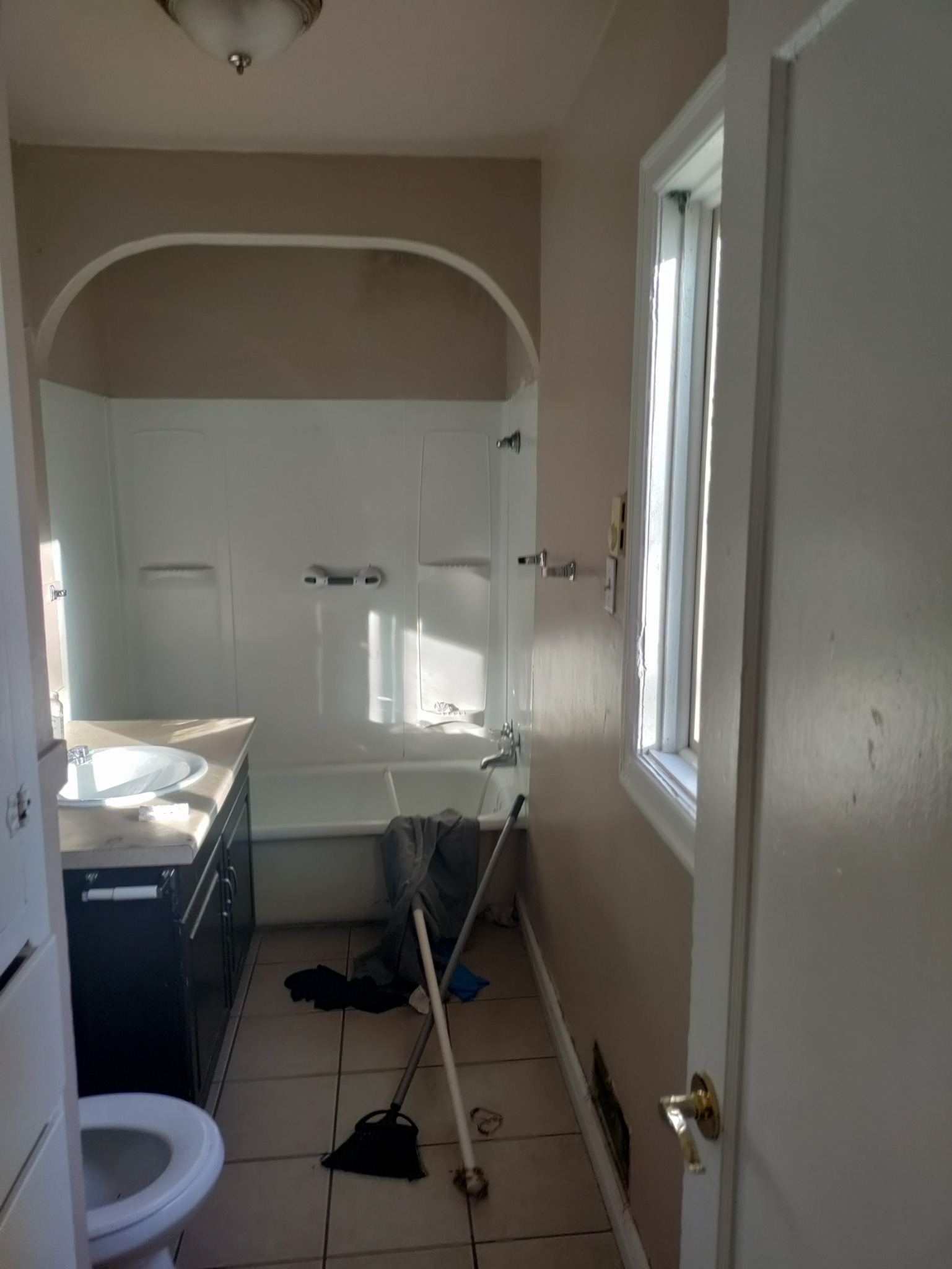

Before: an older bathroom with a dated shower/tub area ready for a full rebuild.
Demo Revealed the Real Scope
Once the old system came apart, it was clear this was not just a surface-level update. The walls needed to be opened up, old materials removed, and the shower rebuilt with proper support and prep.
- Old wall materials had to come out — the shower needed a proper foundation before new finishes went on.
- Wall structure needed attention — exposed framing and substrate showed why the prep mattered.
- Shower pan and wall prep needed to work together — a shower system fails when the foundation is weak.
- The right build is not just tile — structure, substrate, float work, waterproofing, and layout all matter.

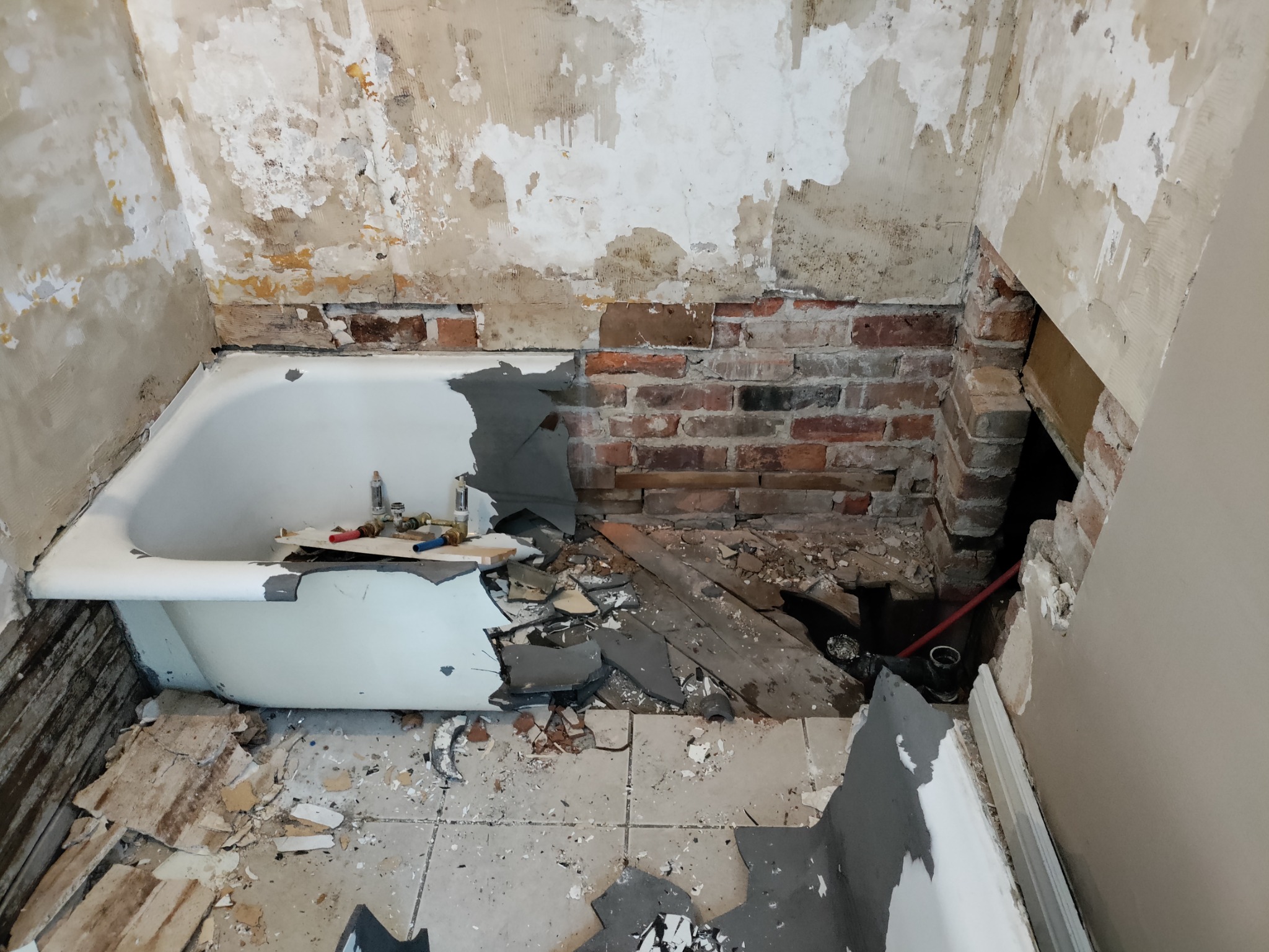

Demo phase: the old shower/tub area opened up and the real condition of the walls exposed.

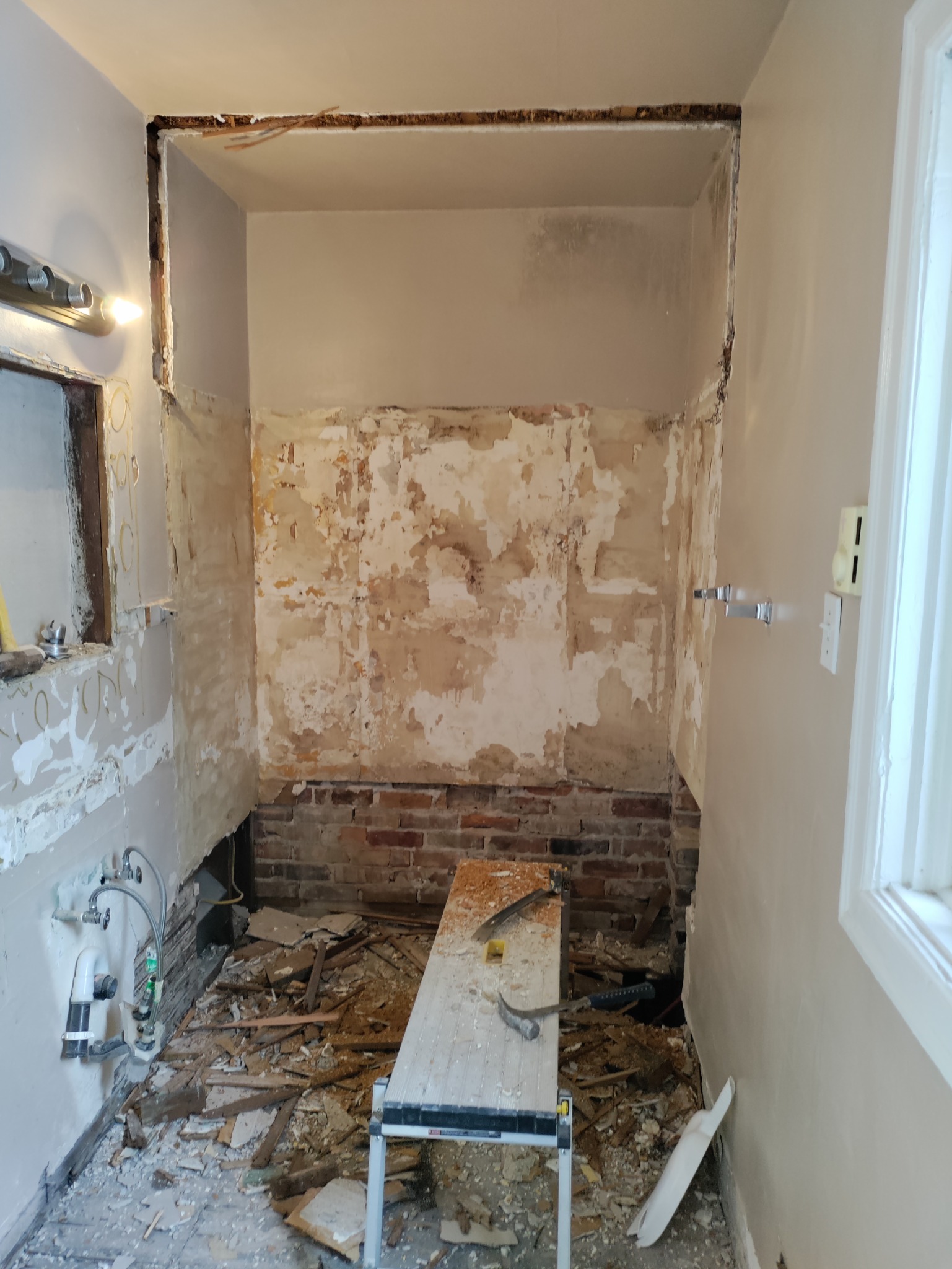

Open-wall view: old materials, exposed brick, and rough conditions that had to be corrected before finishing.

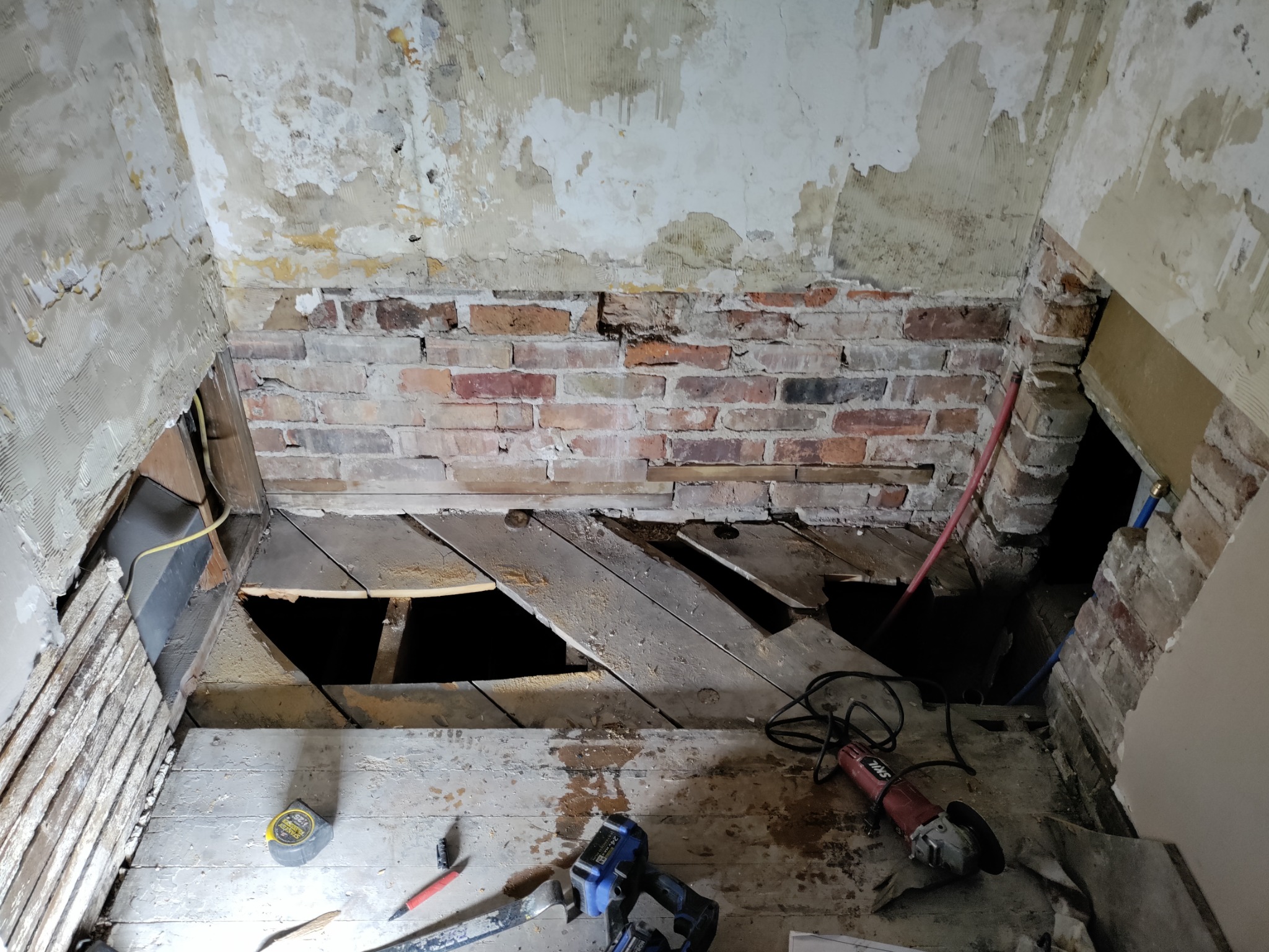

The floor and wall areas had to be cleaned up and rebuilt before a dependable shower could be installed.
Building It Right: Structure, Float, and Prep
This is the part that separates a lasting shower from a quick cover-up. Proper wall structure gives the shower strength. Fabricating and floating the walls with concrete creates a strong, flat, durable base for tile. Concrete-based prep is one of the strongest ways to build a shower wall system when done correctly.

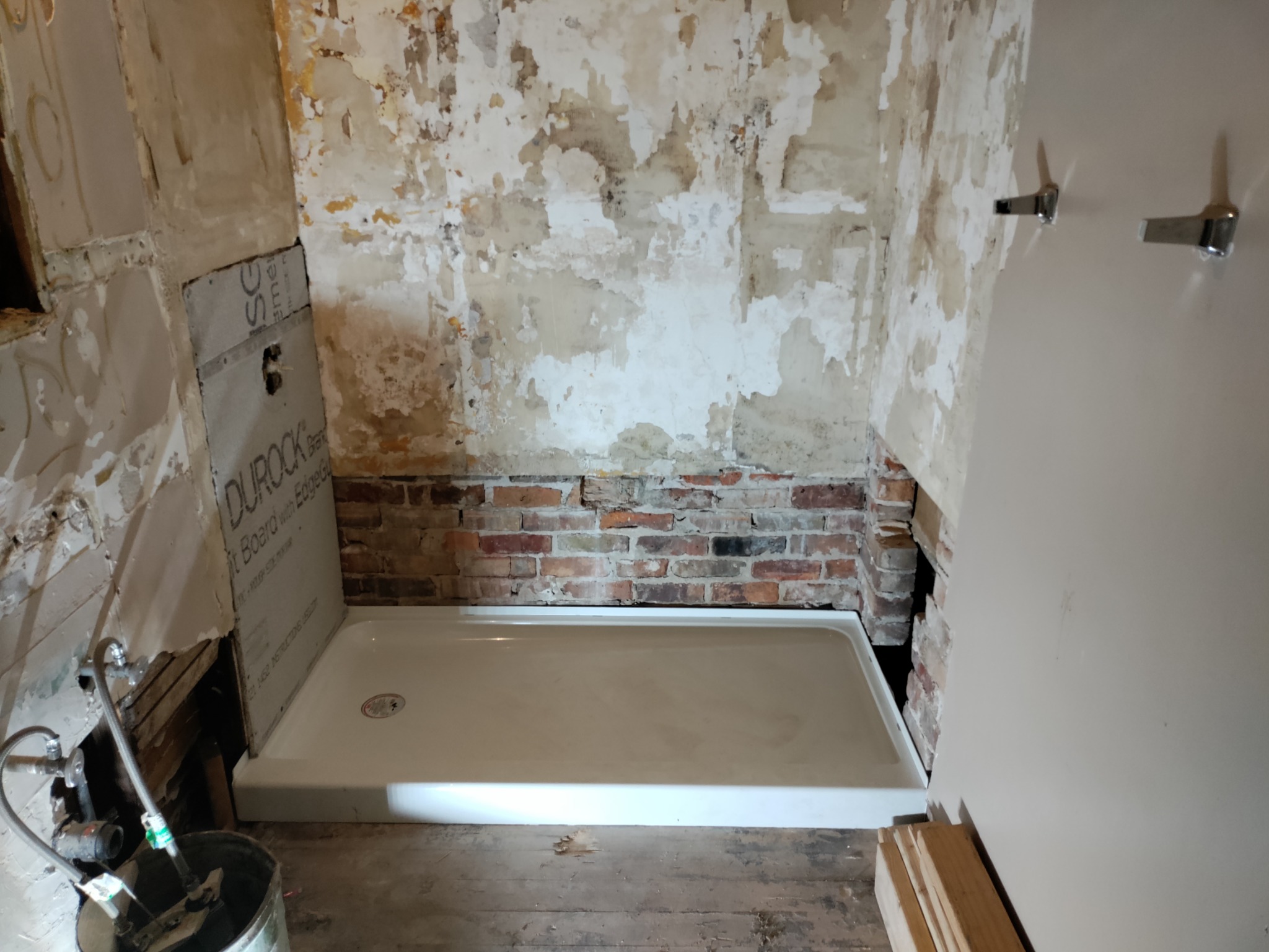

Rebuild phase: shower pan set and walls prepared for a stronger finished system.

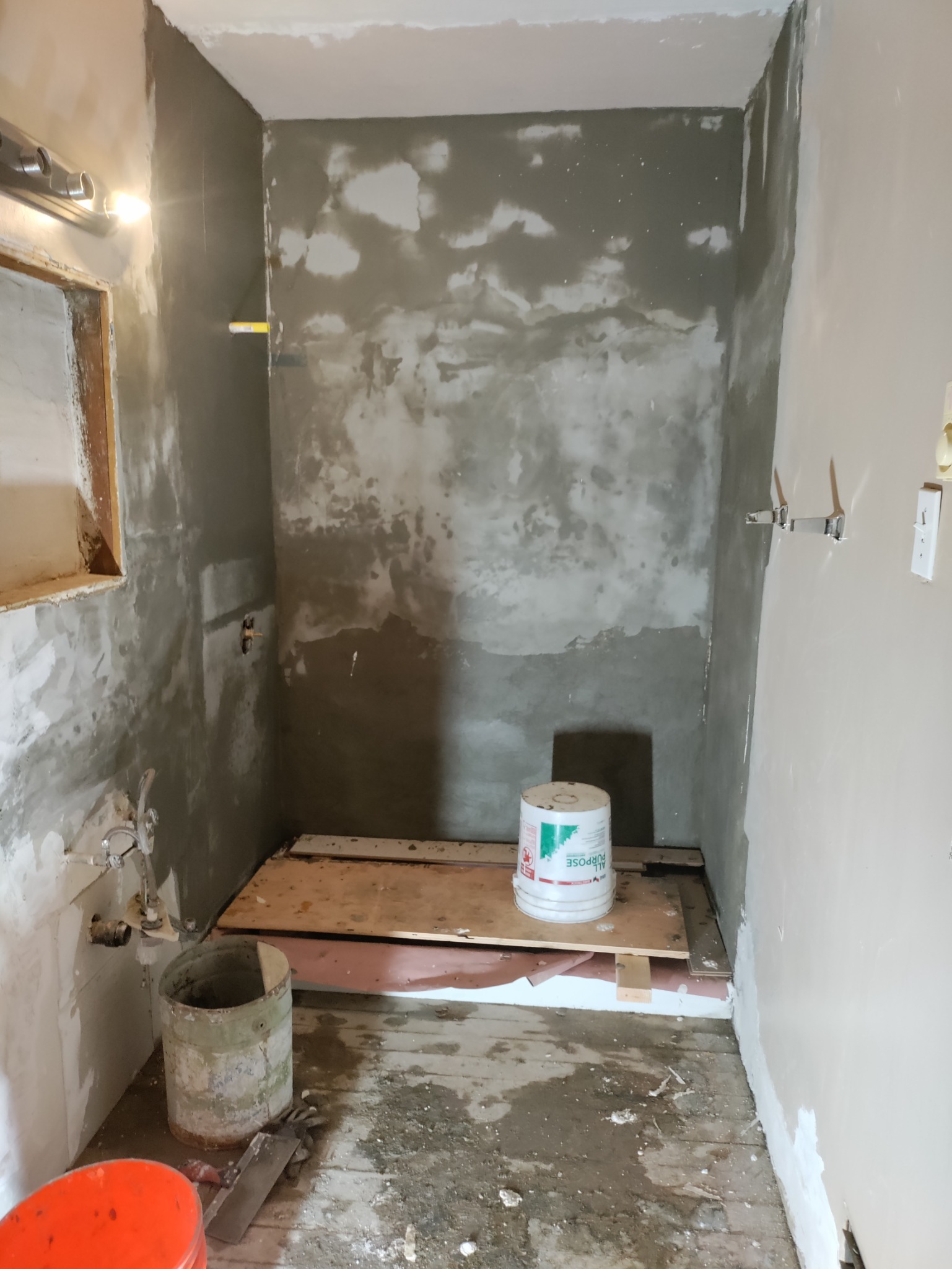

Concrete float prep: walls built up for strength, durability, and a flatter tile installation surface.

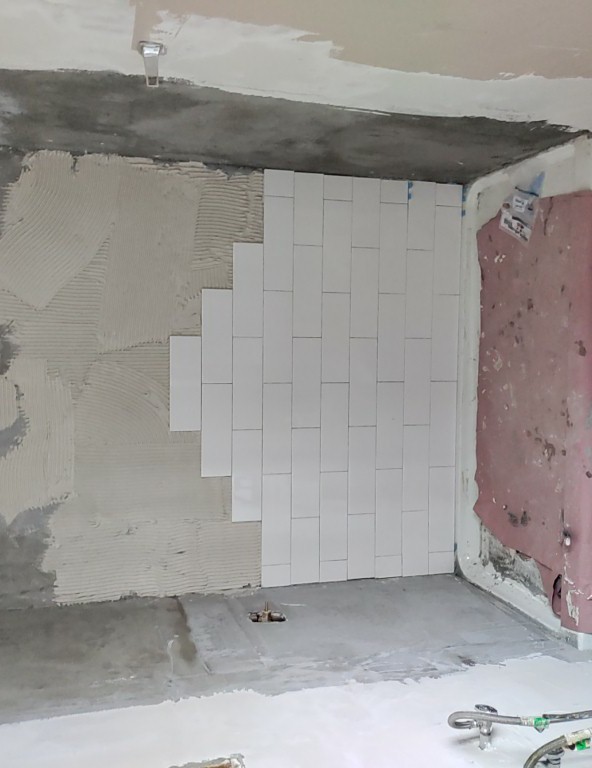

Tile installation: white subway tile going up over the properly prepared shower wall system.
Cost Reality: Why Shower Remodel Pricing Varies
The finished tile is only one part of the cost. When the old system comes out and wall structure needs to be corrected, the project becomes a real rebuild — not just a tile replacement.
| Scope Area | Typical Range | What It Covers |
|---|---|---|
| Demo and disposal | $800–$2,000 | Remove old tub/shower materials, debris, and failed substrate |
| Wall structure and repair | $1,500–$4,000+ | Correct framing, damaged areas, uneven walls, and substrate problems |
| Concrete float / wall prep | $2,000–$5,000+ | Fabricating and floating walls for strength, flatness, and tile readiness |
| Tile and installation | $4,000–$8,000+ | Tile layout, setting, trim, grout, and finish details |
| Fixtures, glass, finishes | $1,500–$4,000+ | Shower trim, glass enclosure, finish hardware, and final details |
| Realistic total range | $10,000–$18,000+ | Depends on what is behind the walls and the finish level selected |
A shower remodel is not priced by the tile alone.
It is priced by what it takes to build the shower correctly.
The expensive mistake is paying for pretty tile over weak walls. The right move is building the structure, prep, and surface correctly first.
The Finished Result
Once the wall system was rebuilt and the tile was installed, the bathroom had a clean, bright shower with a proper foundation underneath.
Finished shower: clean white tile with accent band, built on a stronger prepared wall system.

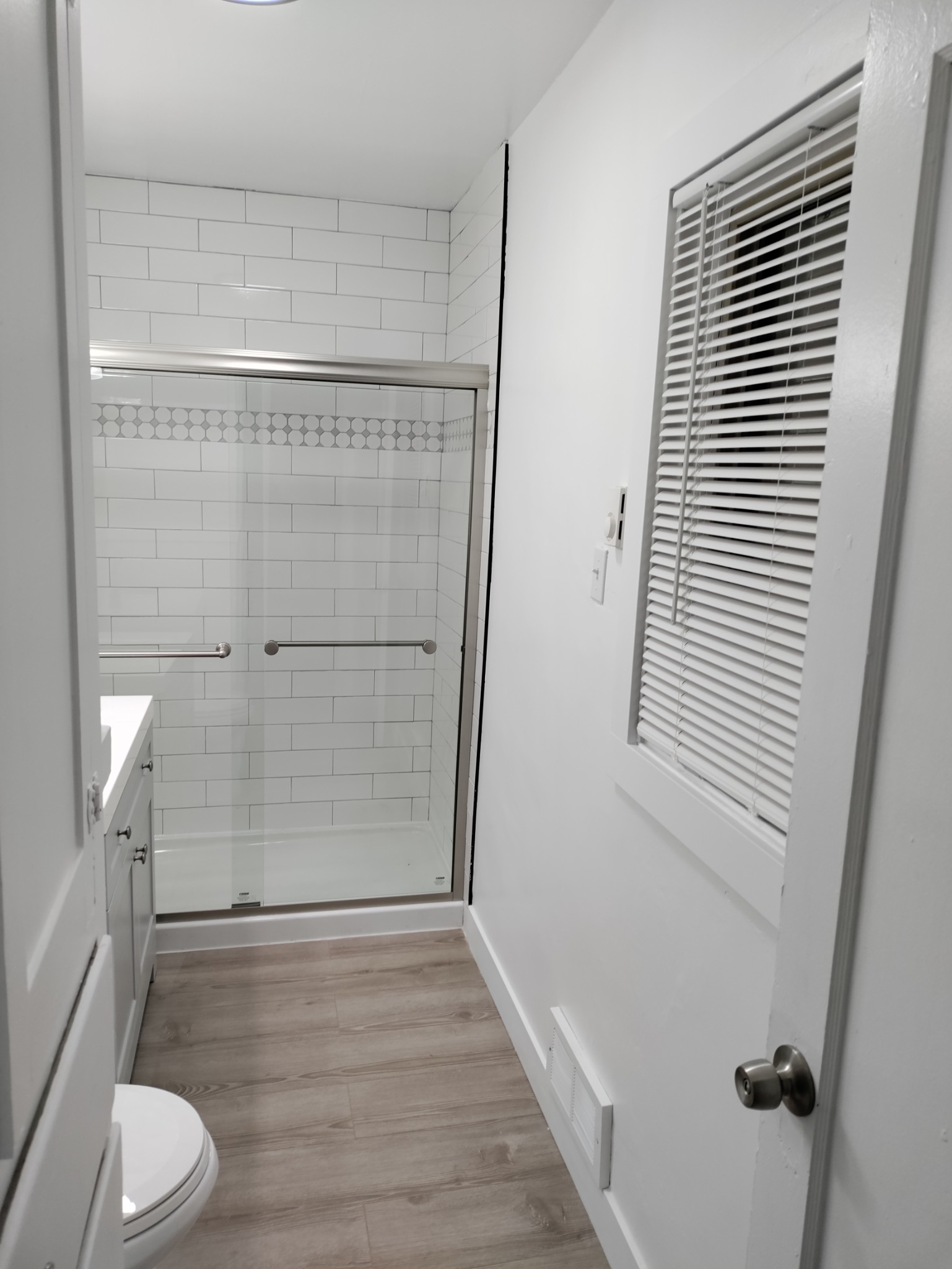

Finished bathroom view: this image works as the featured image for the case study hub.
Final angle: updated shower, glass, flooring, vanity, and a cleaner finished bathroom.
The Outcome
- Old shower/tub system removed
- Walls opened and properly rebuilt
- Concrete float prep used for strength, flatness, and durability
- Tile installed on a better foundation
- Finished bathroom looks clean while the important work is hidden behind the walls
